So what about other class 4 cellular automata—like the ones I showed at the beginning of this section? Do they also end up having complicated sets of possible persistent structures?

Captions on this page:

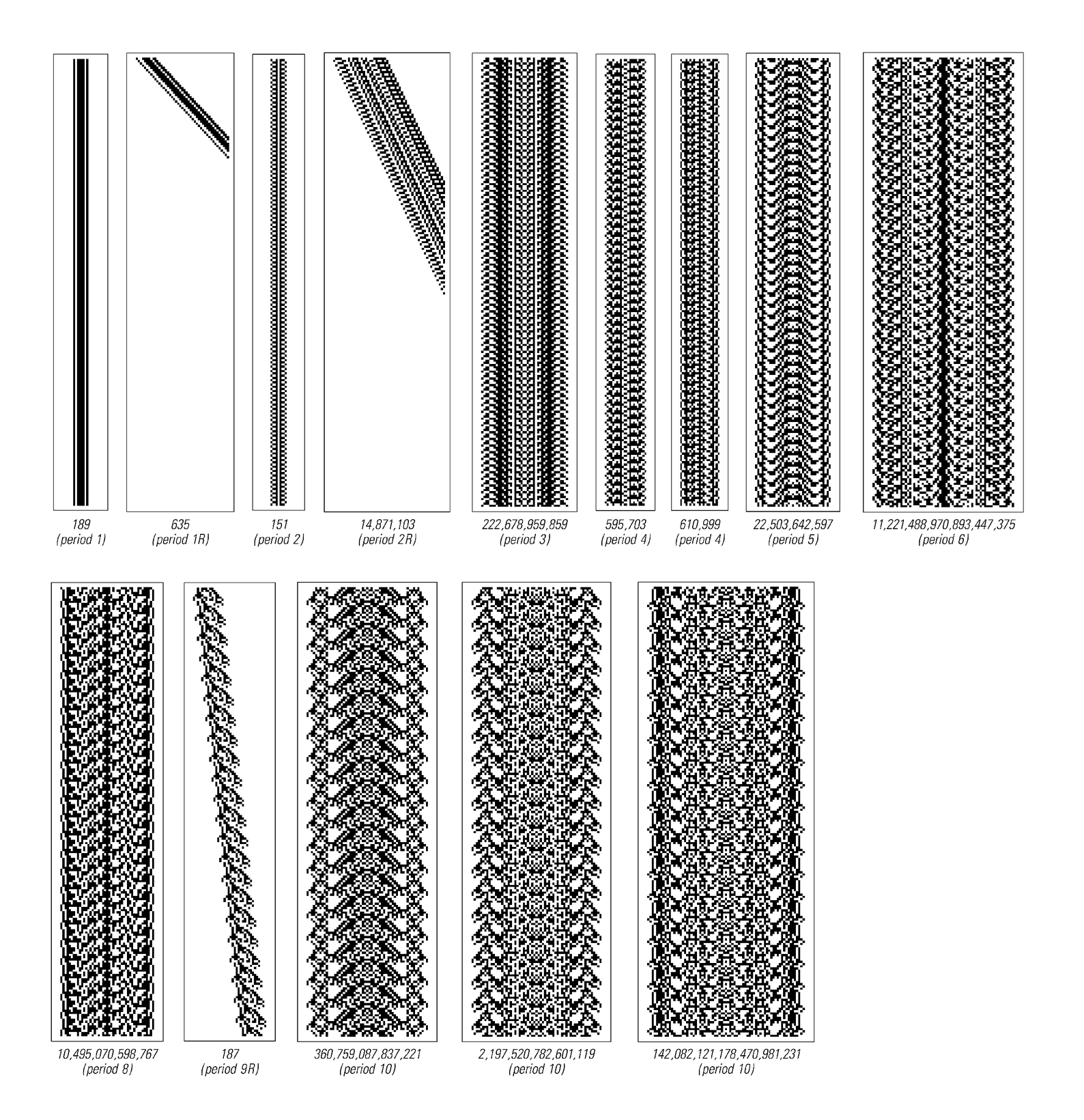

All the persistent structures with repetition periods up to 15 steps in the code 20 cellular automaton. The structures shown were found by a systematic method similar to the one used to find all sequences that satisfy the constraints on page 268.
