In a sense what is happening here is that even though rule 126 usually shows class 3 behavior, it is possible to find special initial conditions that make it behave like a simple class 2 rule.

And in fact it turns out to be quite common for there to exist special initial conditions for one cellular automaton that make it behave just like some other cellular automaton.

Rule 126 will for example behave just like rule 90 if one starts it from special initial conditions that contain only blocks consisting of pairs of black and white cells.

The pictures below show how this works: on alternate steps the arrangement of blocks in rule 126 corresponds exactly to the arrangement of individual cells in rule 90. And among other things this explains why it is that with simple initial conditions rule 126 produces exactly the same kind of nested pattern as rule 90.

Captions on this page:

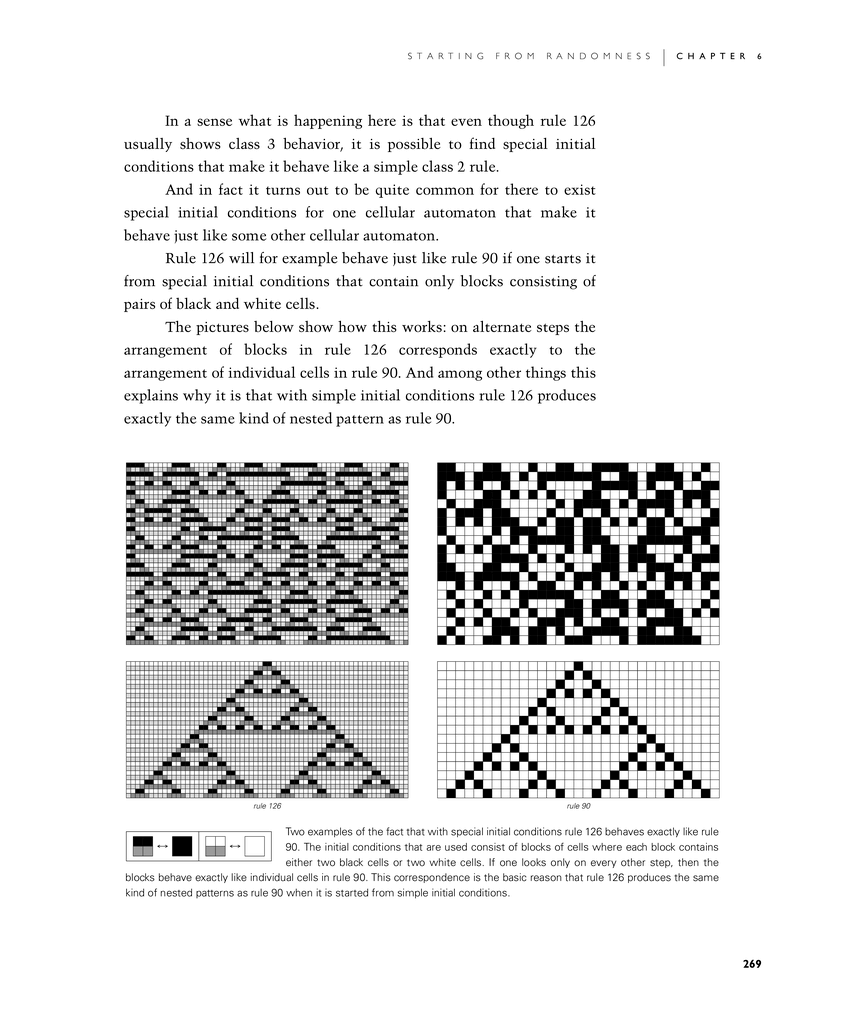

Two examples of the fact that with special initial conditions rule 126 behaves exactly like rule 90. The initial conditions that are used consist of blocks of cells where each block contains either two black cells or two white cells. If one looks only on every other step, then the blocks behave exactly like individual cells in rule 90. This correspondence is the basic reason that rule 126 produces the same kind of nested patterns as rule 90 when it is started from simple initial conditions.

From Stephen Wolfram: A New Kind of Science [citation]
